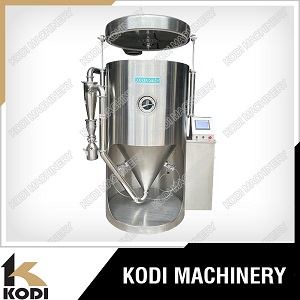

LPG-5 OT Spray Dryer

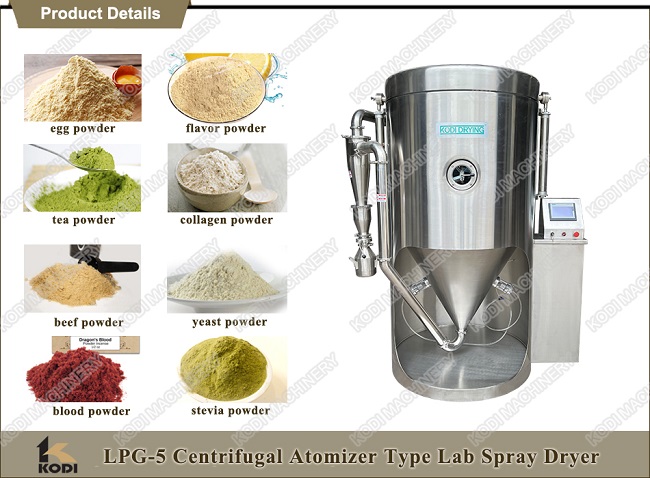

KODI Lab Mini Open Top Spray Dryer



Open Top Spray Dryer Description

KODI LPG-5 Open top type centrifugal spray dryer is a wide applied process in liquid process shaping and drying industry. Particularly it is suitable for producing powder, granule or block solid product from solution, emulsion, suspending liquid and pumped paste liquid. Therefore when the distribution of granule size, final moisture, bulk density, granule shape of finished product must be conformed to accuracy standard, the spray drying is an ideal process.

Top Open Spray Dryer Price Application

LPG rotary atomizer tope open type spray dryer price is widely used in foodstuff, pharmaceutical and chemical industry, such as egg powder, amino acid product, protein, blood, food flavor, food ingredients, pectin, carrageenan, spirulina, herbal extraction, pigment, cocoa, mushroom, PAC, malt dextrin, collagen, juice, yeast, Coffee, Creamer, coconut, milk, gelatin, gum and acacia etc.



Top Open Spray Dryer Working Principle

After filtering and heating, the hot fresh air enter into the air distributor at the top of drying chamber, distributed in spiral way uniformly from up to down. At the same time, the feeding liquid is pumped to the top atomizer, then be sprayed to extremely fine mist liquid drop. Through the short time of direct contact with hot air, the moisture evaporated at once, the solid remains to be powder. The dry powder will be discharged continuously from the bottom of drying tower and cyclone collector, the exhaust air will be discharged after cleaning.

LPG Spray Dryer Technical Parameters

Evaporation

35Kg/h

Dia/Height

1.0M/2.2M

Operation temperature

Inlet 180

Outlet 90

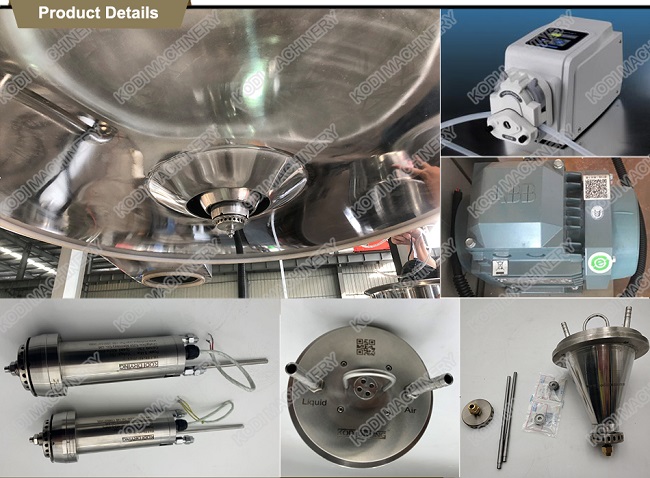

Atomizer

Dia 50mm

Pneumatic driving

Max 30000r.p.m

Power

Drive: 0.75KW

Water consumption

0.1m3/h

Heater: 12-15KW

Type

Open circle

Feeder

Peristaltic pump

Air contact

Co-current

Heater

Electric heater

Collection

Cyclone

Atomizer

Centrifugal atomizer

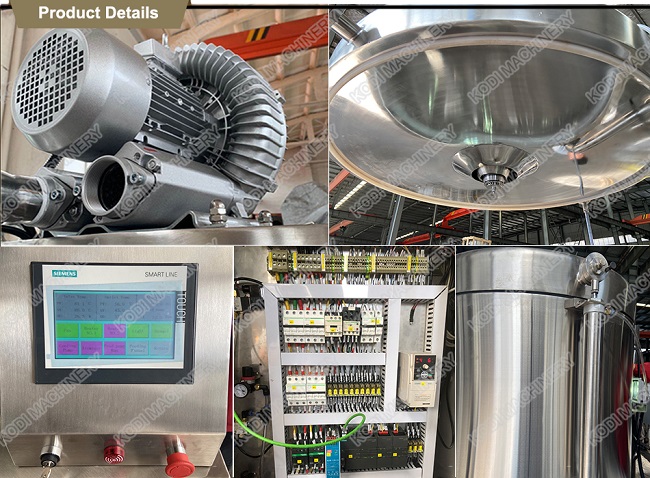

Control

Inlet air adjustable by inverter

Overall size

1.68×1.5×2.1

Weight

About 500Kg

Packing

Poly-wood box

Power

3Ph, 220-460V, 50/60Hz

Successful Experience Overseas of KODI LPG OT Spray Dryer

LPG spray dryer has a very mature technology and process, and KODI company has rich overseas site installation experience and good after sale service.

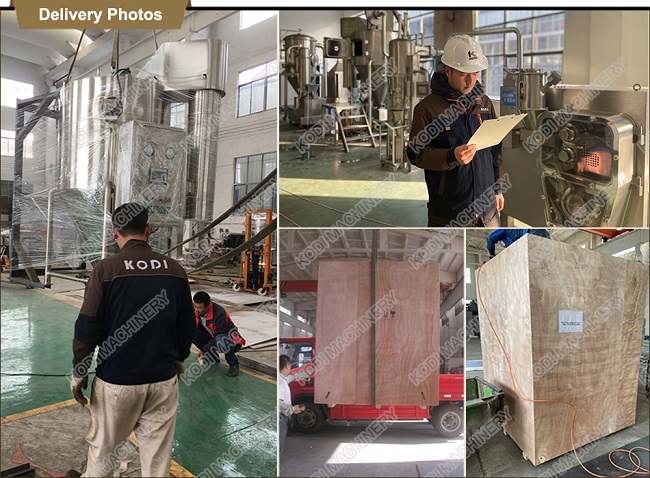

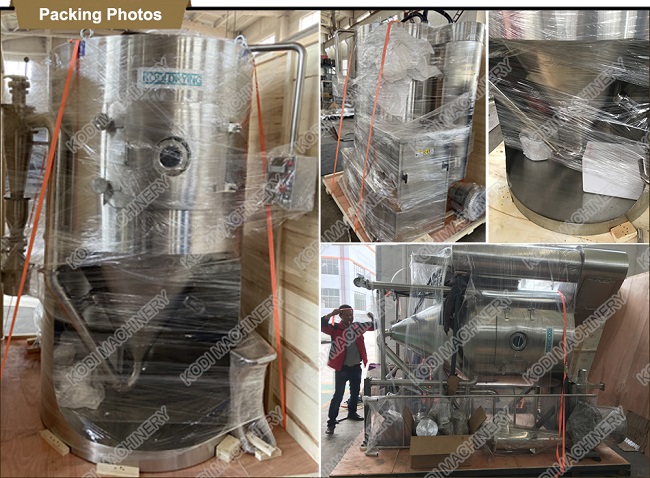

Packing & Delivery of KODI LPG OT Spray Dryer

LPG spray dryer has a very mature technology and process, and KODI company has rich overseas site installation experience and good after sale service.
