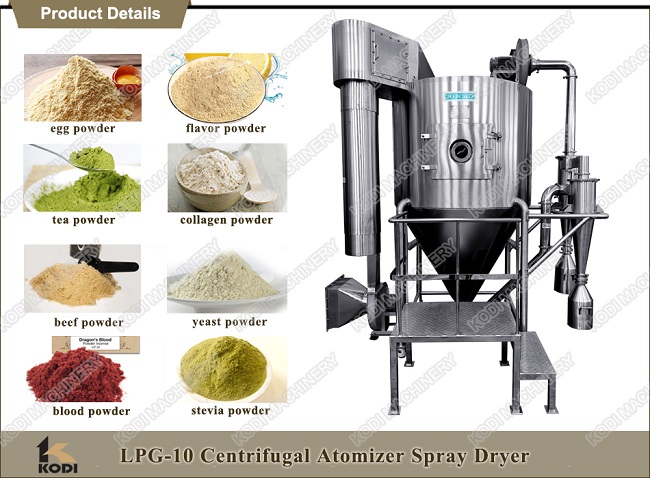

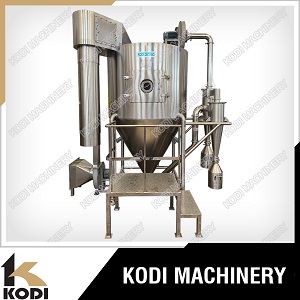

LPG-10 Type Centrifugal Spray Dryer




LPG-10 Spray Dryer Description

LPG-10 Model spray dryer machine is a wide applied process in liquid process shaping and drying industry. It is upgraded version of lpg-5 type spray dryer which is large chamber and two-stages cyclone separators. Particularly it is suitable for producing powder, granule or block solid product from solution, emulsion, suspending liquid and pumped paste liquid. Therefore when the distribution of granule size, final moisture, bulk density, granule shape of finished product must be conformed to accuracy standard, the spray drying is an ideal process.



Application of LPG-10 Spray Dryer

LPG-5 Plus model lab/pilot spray dryer is widely used in foodstuff, pharmaceutical and chemical industry, such as food flavour, egg powder, amino acid product, magnesium citrate, tea, herbal extract, beef powder, protein, maltodextrin, blood, starch, food ingredients, yeast, collagen, whey, Mg citrate, humic acid, ceramic powder, vitamin, urea resin, pectin, stevia, spirulina, microalgae, gum arabic, pigment, PAC, zinc sulfate, organic magnesium compounds, vegetable juice, coffee, creamer, coconut milk, gelatin etc.


Lab Spray Drying Machine Working Principle

After filtering and heating, the hot fresh air enter into the air distributor at the top of drying chamber, distributed in spiral way uniformly from up to down. At the same time, the feeding liquid is pumped to the top atomizer, then be sprayed to extremely fine mist liquid drop. Through the short time of direct contact with hot air, the moisture evaporated at once, the solid remains to be powder. The dry powder will be discharged continuously from the bottom of drying tower and cyclone collector, the exhaust air will be discharged after cleaning.






LPG-10 Spray Dryer Machine Technical Data

Max Evaporation

~10Kg/h

Inner Dia/Height

~1.5M/~2.85M

Operation temperature

Inlet 180℃

Outlet 90℃

Atomizer

Dia 50mm

Electric driving

Power

Drive:6KW

Water consumption

0.1m3/h

Heater:27KW



Type

Open circle

Feeder

peristaltic pump

Air contact

Co-current

Heater

Electric heater

Collection

Cyclone

Atomizer

Centrifugal atomizer

Packing

Plywood box

Power

3Ph, 220-415V, 50/60Hz

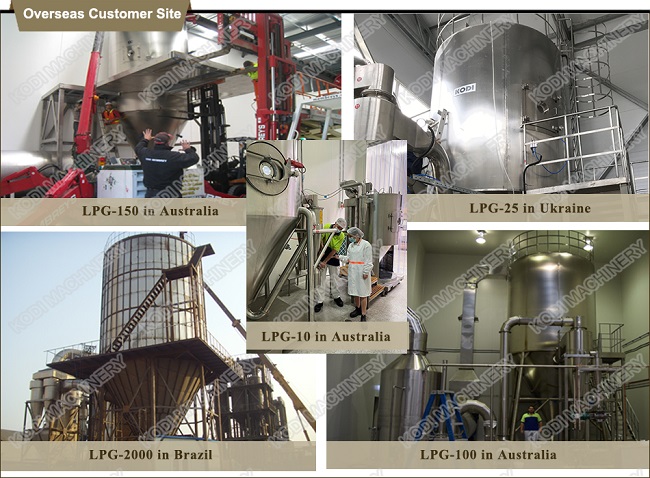

Successful Experience Overseas of KODI LPG 10 Spray Drying Machine
