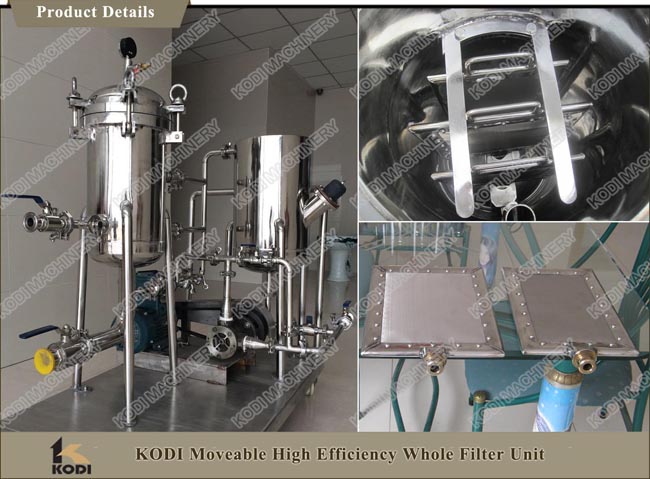

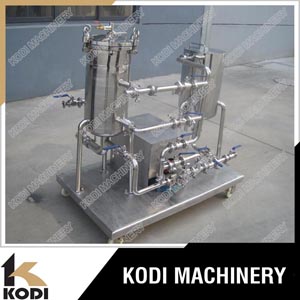

Description of High Efficiency Whole Unit Leaf Filter
The whole unit is made of a stainless steel tank, which is placed in a vertical position with a plurality of filter leaves as a filter element, and is filtered by a pressure or vacuum. According to the requirements of different materials, but also increase the filter aid agent preparation, mixing bucket, in leaf filter pre coated diatomite, perlite, activated clay, and other filter aid agent; filter aid can also according to the process requirements to a certain percentage of the first and mixed materials or in the filtration process with metering pump in proportion to continue to join, in order to improve the efficiency of filtering.
Materials of Whole Unit High Efficiency Leaf Filter
This filter machine unit used in laboratories, workshops emergency filtration, a small amount of high precision and small occasions
The main material: Carbon steel Q235B/ stainless steel SUS304 or SUS316L/ Titanium TA2,TA3/ Inconel
Ring material: NBR/ Tetrafluoroethylene / bag tetrafluoroethylene / Viton
Filter Material: Stainless steel / stainless steel SUS304 or SUS316L
Technical Parameters of KODI Whole Unit Leaf Filter
Model |
The filter area (m2) |
Export Path (mm) |
Maximum flow rate m3/h( Viscosity= 1cps) |
Maximum working pressure( Mpa) |
Maximum operating temperature(℃) |
Nominal filtration accuracy(μm) |
XY-D-1p1s |
0.25 |
Ø40 |
18 |
0.6 |
120-350 (Operating temperature with the use of filter material related) |
1,5,10,15,25,40,50,65,75,80,100,……1200 |
XY-D-1p2s |
0.5 |
Ø40 |
36 |

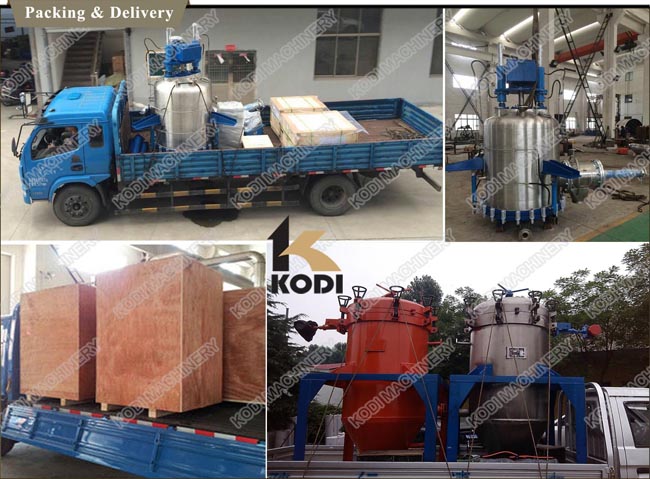

Whole Unit Leaf Filter Packing and Delivery
Successfull Project of KODI High Efficiency Whole Unit Leaf Filter
