Home >> Products >> Carrageenan Processing Machine

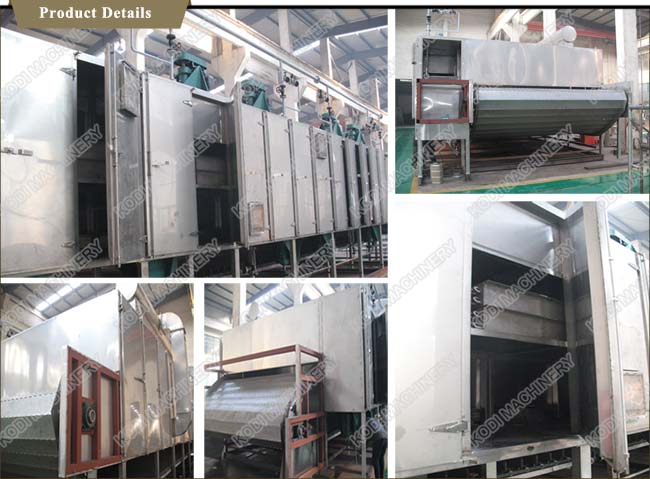

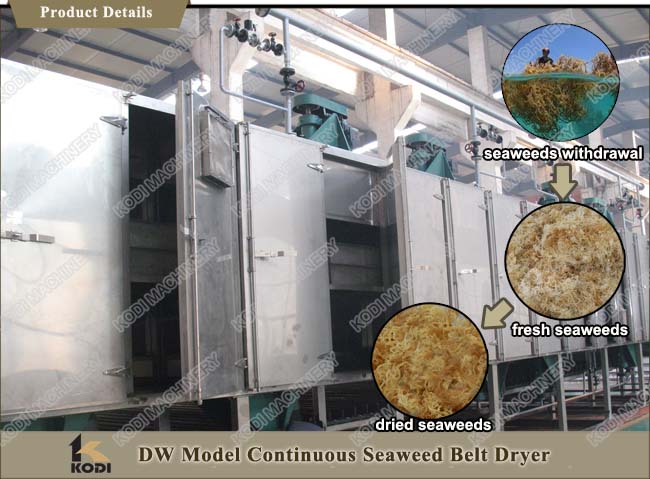

Carrageenan Continous Belt Dryer



Description of Carrageenan Belt Dryer

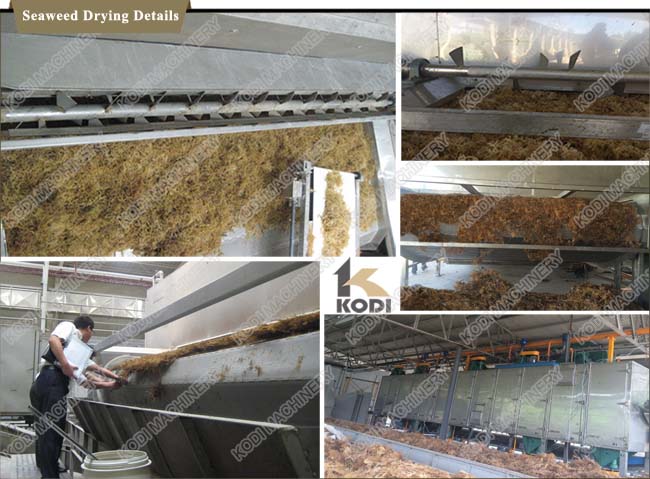

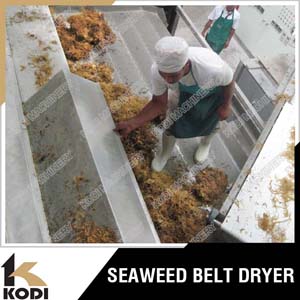

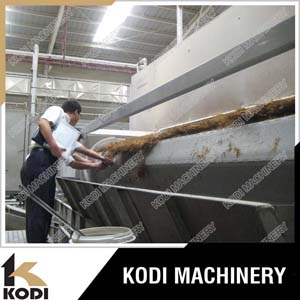

The seaweed after washed should be distributed on the conveyer belt through suitable mechanism such as star distributor, swing conveyor, crusher or granulator, the conveyer passes through the channel including of one or several heating unit. Each heating unit is equipped with air heater and circle system. Each channel has one or several damp discharge systems. When the conveyer passes through it, hot air will pass through the seaweeds from up to down or from down to up. In this way the seaweeds can be dried uniformly.

Application of Carrageenan Belt Dryer

The Industrial continuous dryer is an industrial continuous drying equipment. It is widely used for chemical industry, foodstuff industry, pharmaceutical industry, construction materials industry, electronic industry and so on. Especially it is suitable for drying raw materials that are good in breathability and have the shape of pieces or strip of granule. It is also possible to dry the pasted raw materials such as filter cake after shaped through granulator or extruder.

Features of Carrageenan Dryer/Drying Machine
1, Air quantity, heating temperature, materials staying time and feeding speed can be adjusted to achieve the best drying effect.
2,The equipment configuration is flexible, mesh belt washing system and materials cooling system can be used.
3,Most air is recycled to realize saving energy
4,The machine is equipped with unique air dividing apparatus, it makes the hot air distribute uniform better and guarantee the quality of products is constant.
5,Heating source can be steam, conduction oil,, electricity, coal (oil), or hot air furnace.

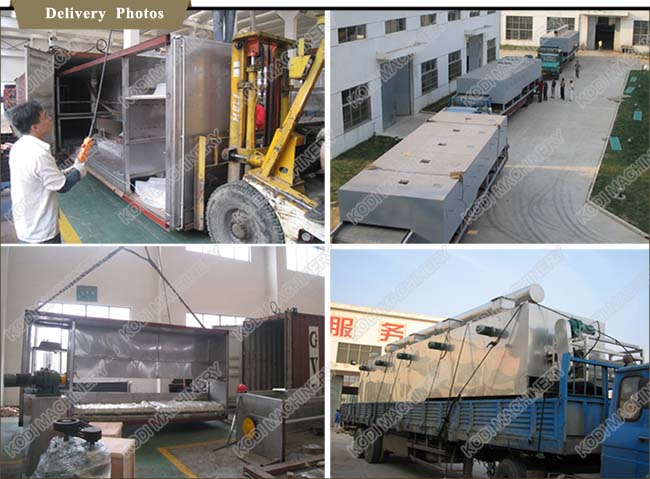

Packing and Delivery of KODI DW Carrageenan Belt Dryer

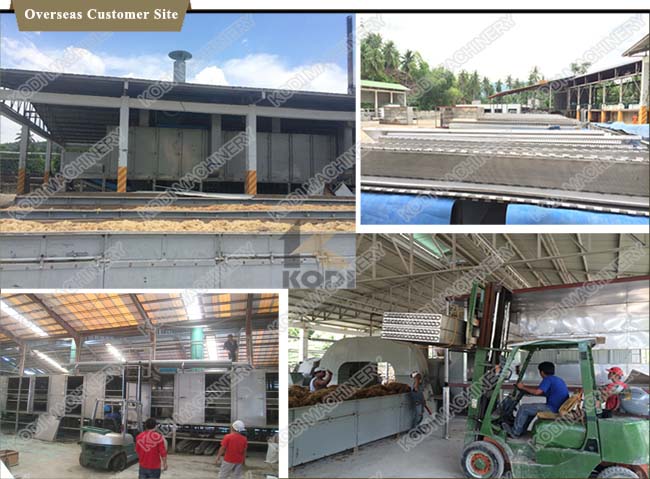

Successful Experience Overseas

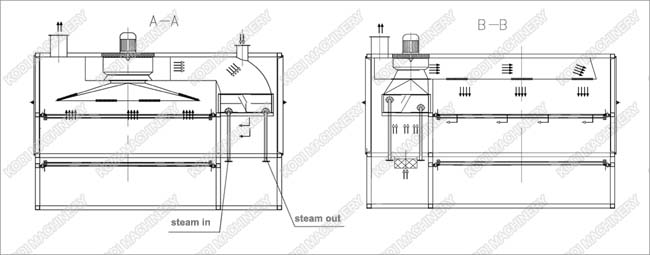

Simple flow chart

Carrageenan Belt Drying Machine Technical Parameters

Type

DW-1.2-8

DW-1.2-10

DW-1.6-8

DW-1.6-10

DW-2-8

DW-2-10

DW-2-20

Quantity of unit

4

5

4

5

4

5

10

Belt width(m)

1.2

1.6

2

Length of drying section(m)

8

10

8

10

8

10

20

Thickness of raw material(mm)

≤60

Operation temperature(°C)

50-140

Steam pressure(MPa)

0.2-0.8

Steam consume(kg/h)

120-300

150-375

150-375

170-470

180-500

225-600

450-1200

Drying time(h)

0.2-1.2

0.25-1.5

0.2-1.2

0.25-1.5

0.2-1.2

0.25-1.5

0.5-3

Drying strength(kg/h)

60-160

80-220

75-220

95-250

100-260

120-300

240-600

Power equipped(kw)

11.4

13.6

11.4

13.6

14.7

15.8

36.8

Overall dimensions

L(m)

9.56

11.56

9.56

11.56

9.56

11.56

21.56

W(m)

1.49

1.49

1.9

1.9

2.32

2.32

2.32

H(m)

2.3

2.3

2.4

2.4

2.5

2.5

2.5

weight(kg)

4500

5600

5300

6400

6200

7500

140

Remark:

         1. Parameters above in the table are regular model for reference;

         2. The model for drying seaweed is special which doesn't show in the above table , please contact KODI sales team to konw more details about seaweed belt dryer.
