Home >> Products >> Instant Drinks Processing Machine

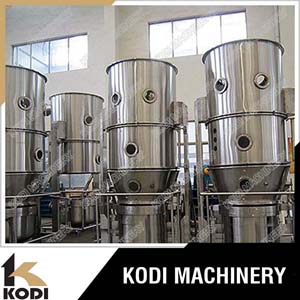

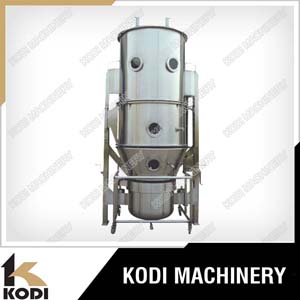

FG Model Fluid Bed Dryer



FG Fluid Bed Dryer Applications

1,Use screw to extrude and vibrate granule and granulate the granule with the method of humidity, high speed and mixing

2,Suitable for drying humidity block or powder raw material in the fields such as pharmaceutical, foodstuff, feed stuff, chemical industries and so on

3,The raw material that large in granule and small in block and having adhesive property

4,Suitable for raw materials, its volume will be changed when dry, such as giantarum, polyacrylamide, etc.


Features of FG Fluid Bed Dryer

1,The structure of fluidization bed is round so as to avoid the dead angle

2,Inside the hopper there is a stirrer in order to avoid agglomeration of raw material and forming canal of flow

3,The granule is discharged through the method of turning over. In this way it is very convenient. The discharging system can be designed as required too

4,It is operated at the condition of negative pressure and seal. The air is filtered. Therefore it is simple in operation and convenient in clean. It is an ideal equipment that is in conformity with the requirements of GMP.

5,The drying speed is fast and the temperature is uniform. In general, the drying time is 15-45 minutes each batch

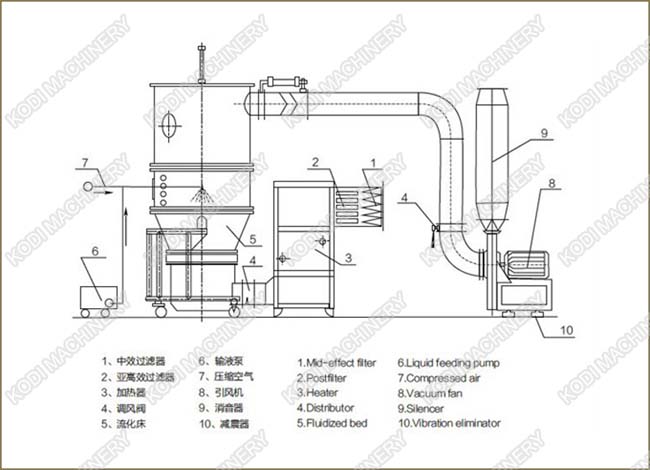

Working Principle of FG Fluid Bed Dryer

When air is purified and heated, it is introduced from the bottom of induced-draft fan and passed through the screen plate of raw material. In working chamber, the state of fluidization is formed through stirring and negative effect. The moisture is evaporated and removed rapidly and the raw material is dried quickly.

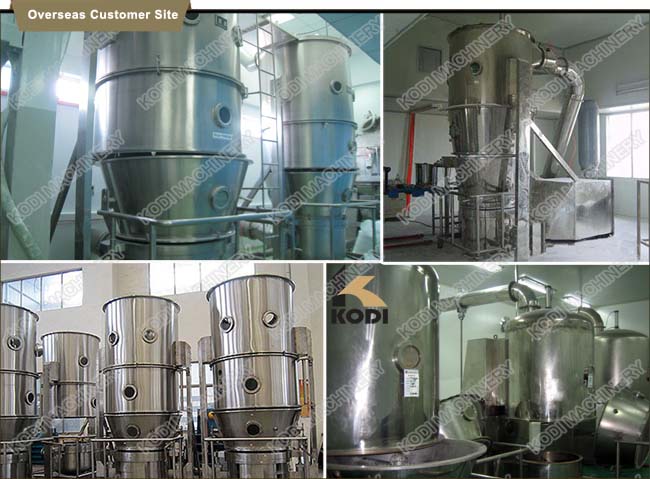

Overseas of FG Fluid Bed Dryer

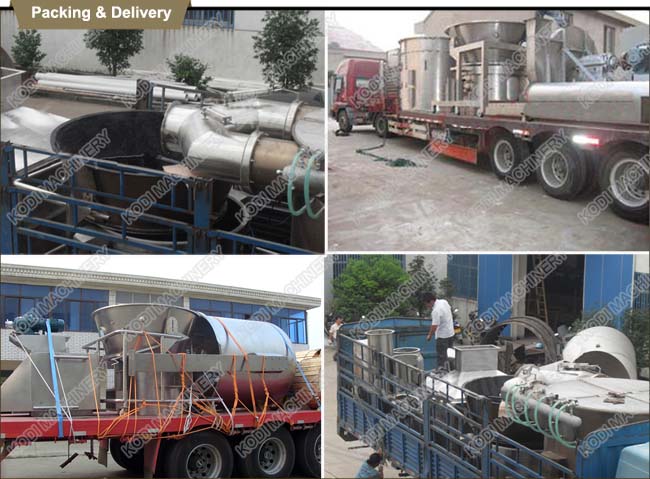

Packing and Delivery of FG Fluid Bed Dryer


Technical Parameter of FG Fluid Bed Dryer

Item

Unit

Machine type

3

5

30

60

120

200

300

500

Material tank

Diameter

Mm

300

400

700

1000

1200

1400

1600

1800

Volume

L

12

22

100

220

420

670

1000

1500

Production capacity

Min.

Kg/batch

1.5

4

15

30

80

100

150

250

Max.

Kg/batch

4

6

36

72

140

240

360

600

Steam consumption

Kg/batch

12

23

70

140

211

282

366

465

Compressed air consumption

M³/min

0.3

0.3

0.3

0.6

0.6

0.9

1.1

1.6

Fan power

Kw

2.2

2.2

5.5

11

18.5

22

30

45

Temperature

Normal temperature ~ 120℃(auto-adjusting)

Product rate

%

>99

Final moisture content

%

~ 0.2

Noise

dB(A)

75

Main machine height

Mm

2100

2300

2500

3000

3300

3800

4000

4400
