Chilli Super Fine powder Pulverizer

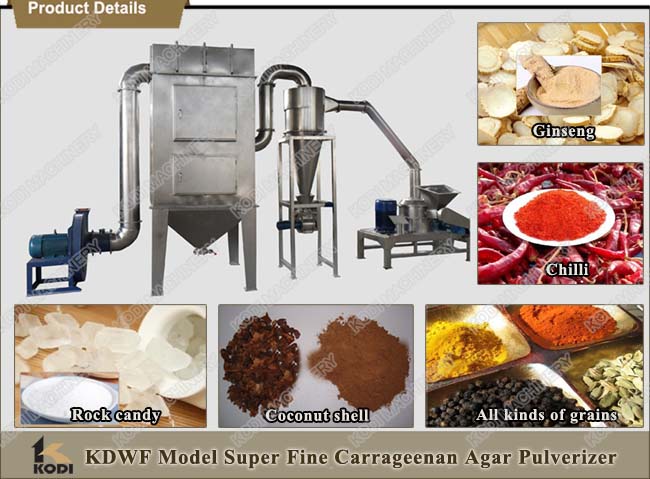

Main Application of Super Fine powder Pulverizer

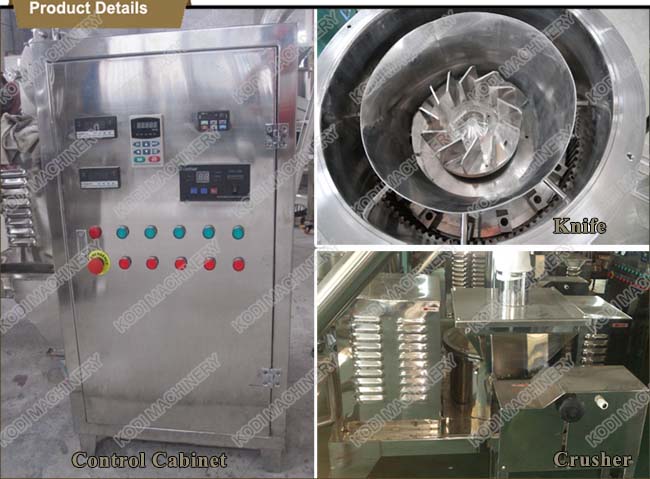

KODI Super Fine powder pulverizer (crusher/grinder) is composed of main motor auxiliary motor and electrical control cabinet with the capabilities of winnowing, no sieve or mesh compact design and reasonable structure. Due to the negative pressure sends heat out continuously in operation, the machine is also applied for the grinding of heat sensitive materials, The pulverizer is widely applied in industries such as chemical foodstuff, pharmacy, cosmetic, tincture resin and so on like herbal product, Carrageenan , Agar powder, Cottonii seaweed .ranking world advanced levels.

Stainless Steel Pulverizer Working Method

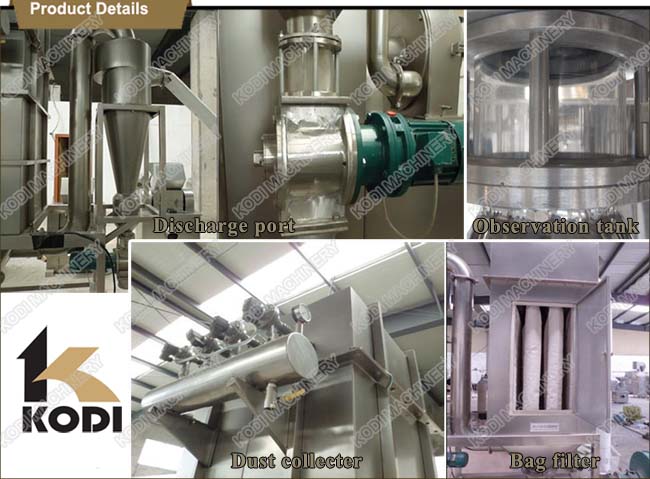

Raw material is delivered to the grinding chamber via hopper by spiral feeder, and is cut and sheared by the high speed cutters, then the materials moved into the whirlwind separator and sack dust catcher by the negative pressure sucking method. The dust is collected and recycled via cloth bag or filter of dust absorption box. There is no dust flying during production so as to improve the utilization and decrease the production cost.

Flow Chart of Pulverizer

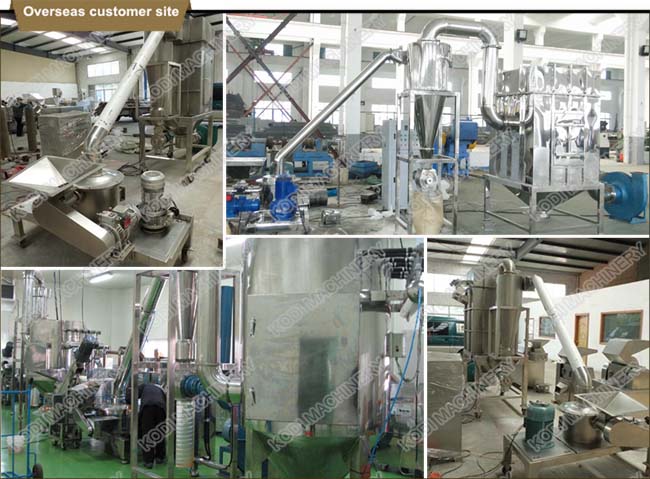

Successfull Project

Super Fine Powder Pulverizer Technical Parameters

Model

KDWF-15

KDWF-20

KDWF-30

KDWF-60

Production Capacity(kg/h)

10-200

50-300

100-1000

200-2000

Feeding Size(mm)

<=10

<=10

<=10

<=10

Output Size(mesh)

60-320

60-320

60-320

60-320

Total Power(kw)

13.5

18.37

39.05

84

Main Speed(r/min)

6000

5700

5000

3200

Overall Weight(mm)

4200*1200*2700

4300*1350*2700

7920*1480*3290

9500*1800*3730


Weight(kg)

1000

1500

2500

3200
