Home >> Products >> Mixer Crusher and Sifter

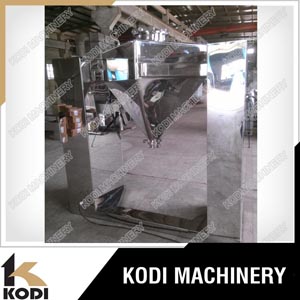

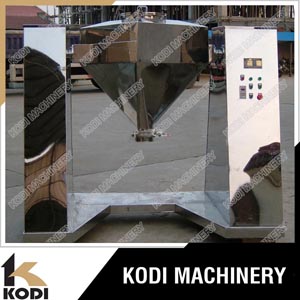

Square Cone Type Mixer




Main Application of Square Cone Mixer

Square Cone Mixer is a novel material mixer extensively used in the pharmaceutical, chemical, metallurgical, food, light and feed industries. This machine can mixer powder or granules very evenly so that the mixed materials can reach the best effect.

Features of Square Cone Mixer

Square Cone Mixer is a novel material mixer extensively used in the pharmaceutical, chemical, metallurgical, food, light and feed industries. This machine can mixer powder or granules very evenly so that the mixed materials can reach the best effect.

Working Principle of Square Cone Mixer

Materials are charged into a closed square-cone mixing barrel. The symmetrical axes of hopper and the axes of rotating shaft form an included angle, while materials with different constituents are making three dimensional space motions in the closed hopper and producing strong rolling, diffusion and contraction to achieve the best effect of mixing

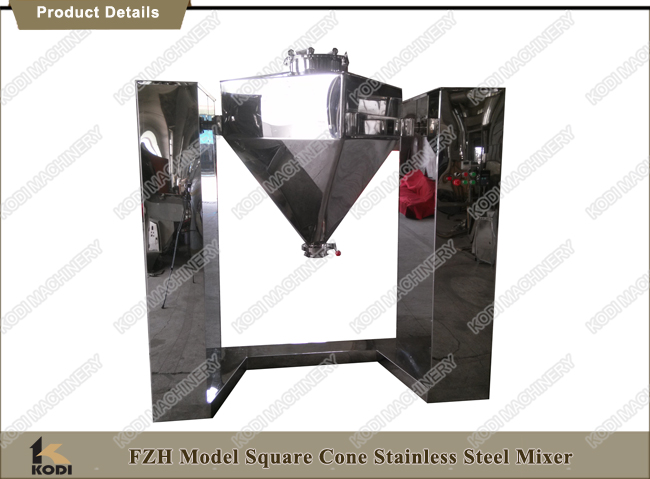

Drawing of Square Cone Mixer



Customers Project Site of KODI Square Cone Mixer

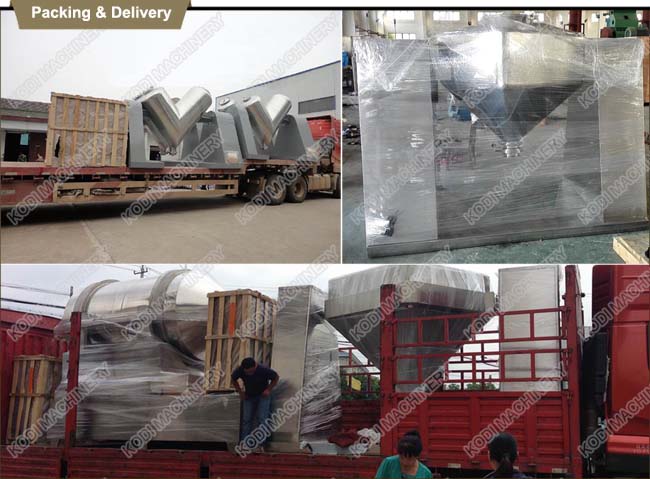

Packing and Delivery of KODI Square Cone Mixer

Technical Parameters of Square Cone Mixer

Model

Total volume (m3)

Capacity(Kg/batch)

Mixing time(min)

Cylinder speed (r/min)

Motor power(Kw)

Overalll size (LxWxH)mm

FHJ-300

0.3

60

5-15

13

1.5

1800x960x1800

FHJ-500

0.5

50-150

8-20

12

3

1920x1200x1800

FHJ-1000

1

150-250

15-30

12

5.5

2460x1300X2400

FHJ-1500

1.5

250-350

15-30

18

5.5

2800x1400x2400

FHJ-2000

2

300-500

15-30

12

7.5

3000x1700x2600

FHJ-2500

2.5

450-620

15-30

12

7.5

3200x1700x2700

FHJ-3000

3

650-750

20-40

8

11

3380x1700x2800

FHJ-4000

4

700-1000

20-40

8

15

4000x2200x3200

FHJ-5000

5

800-1200

20-40

8

18.5

4100x2200x3850
