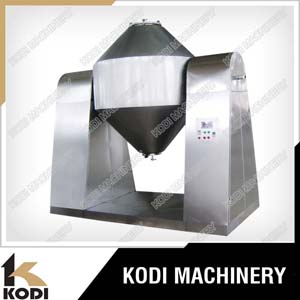

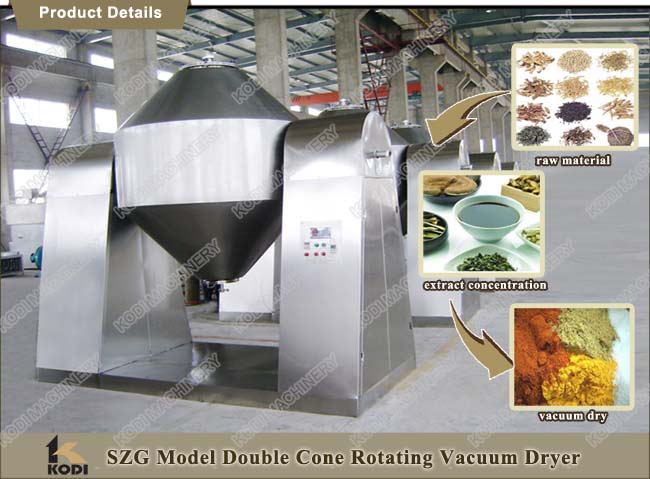

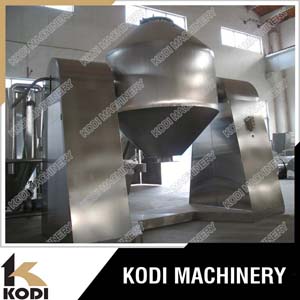

Double Cone Rotating Vacuum Dryer


Description of Double Conical Rotating Vacuum Dryer

The vacuum dryer consists of a jacketed double conical shell rotating around 6 RPM with under the state of vacuum inside the shell, pass steam or hot water in to jacket for heating. The large heating surface area presented by the internals of the cone ensures uniform drying of the product, as the product gently tumbles while the cone rotates slowly. The vaporized steam can be pumped out through vacuum exhaust pipe when the damp raw material absorbed heat. The diffusive action induced by the tumbling cone constantly presents a fresh layer to come into contact with the indirectly heated walls of the shell, the dry speed of raw material is quickened and uniform drying efficiency is raised too. A well designed sealing system enable maintenance of deep vacuum inside the shell, and also ensures positive circulation of a heating media in the jacket.



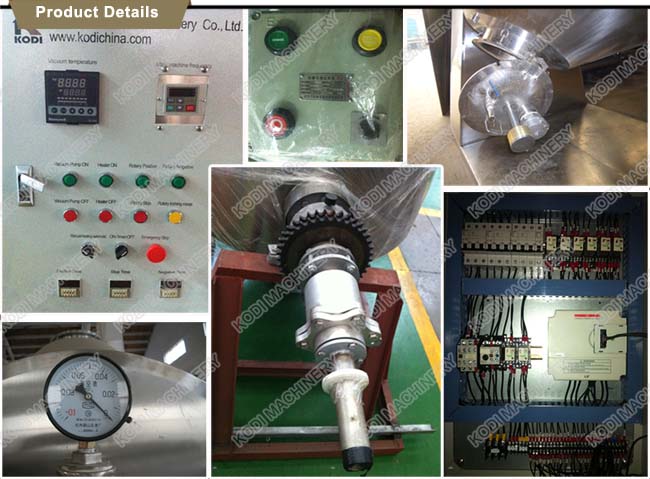

Features of Rotating Vacuum Dryer

  • Design is GMP
  • All Product contact parts AISI 316/ 316L & non-contact parts AISI 304. Or completely 304.
  • Simple & compact Design for Easy to operate, clean, convenient & user friendly.
  • Automated mixing and Drying process in single bowl.
  • Dust free operation.
  • High vacuum operation
  • Low temperature drying.
  • Solvent recovery
  • Continuous rotation of container, material will make complex impacting motion in the container and reach to uniform mixing and drying at low temperature..
  • Continues vacuum maintenance during process.
  • Vacuumed closed system with condenser, Receiver for solvent recovery & Cyclone separator to recovery the solid particle.
  • Rapid & Complete discharge / Zero holdup after discharge
  • The product dried is homogeneous with uniform properties.
  • Very low value of final moisture even at low drying temperatures.
  • Inside Filter assembly with 5 Micron.

Optional Features :

l   Option for advance PLC Controls with HMI touch screen..

l   Option for Flame Proof Electrical.

l   Option for lump breaker.

l   Option for condenser, Receiver & Cyclone for solvent recovery.

l   Option for heating media steam/ hot water / hot oil.

Applications of Double Conical Rotating Vacuum Dryer

1. Material that cannot undertake high temperature.

2. Material that is easy to oxidize.

3. Material that do not permit to destruct.

4. To recover material with residual volatile.

5. Material with vigorous irrelative and toxicity.

6. Biology products and mine.

7. Dry raw materials of pharmaceutical industry, chemical industry, foodstuff industry, dyestuff industry and biochemistry at low temp etc.

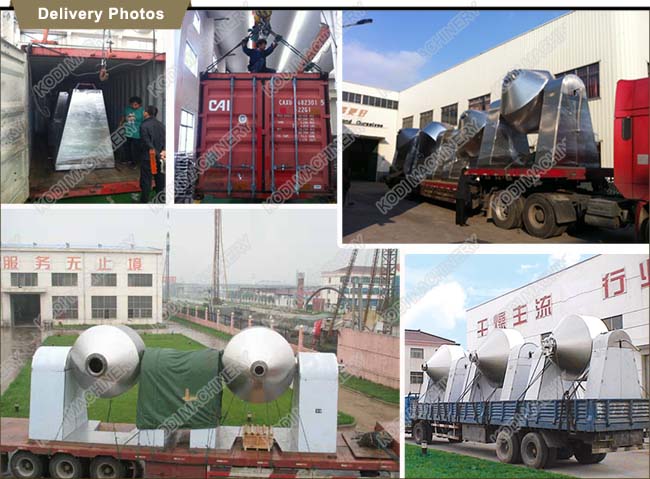

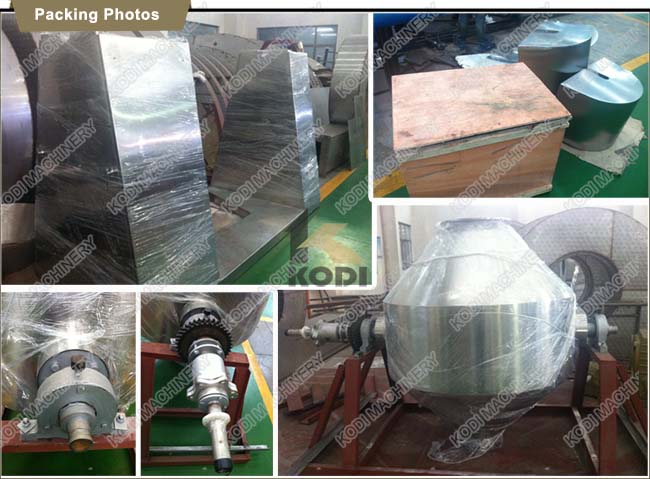

Packing and Delivery of KODI SZG Doulbe Cone Rotating Vacuum Dryer



Successful Experience Overseas By KODI Rotating Vacuum Dryer

Technical Parameter of Double Conical Rotating Vacuum Dryer

Model (SZG-)

100

350

500

750

1000

1500

2000

3500

4500

5000

Total volume(L)

100

350

500

750

1000

1500

2000

3500

4500

5000

Loading volume(L)

≤50

≤175

≤250

≤375

≤500

≤750

≤1000

≤1750

≤2250

≤2500

Heating area
(m2)

1.16

2

2.63

3.5

4.61

5.58

7.5

11.2

13.1

14.1

Rotating peed
( rpm)

4 - 6

Power of motor
(kw)

0.75

1.1

1.5

2

3

3

4

5.5

7.5

11

Occupied area,
L×W(mm)

2160
×800

2260
×800

2350
×800

2560
×1000

2860
×1300

3060
×1300

3260
×1400

3760
×1800

3960
×2000

4400
×2500

Rotating height
(mm)

1750

2100

2250

2490

2800

2940

2990

3490

4100

4200

Design pressure
inside the tank
(MPa)

-0.1-0.15

Design pressure
of jacket (MPa)

≤0.3

working temperature (oC)

In the tank≤85 jacket≤140

When use condenser

2X-15A

2X-15A

2X-30A

2X-30A

2X-70A

JZJX300-8

JZJX300-4

JZJX600-8

JZJX600-4

JZJX300-4

model and power
of vacuum pump

2KW

2KW

3KW

3KW

505KW

7KW

9.5KW

11KW

20.5KW

22KW

When don’t use
condenser

SK-0.4

SK-0.8

SK-0.8

SK-2.7B

SK-2.7B

SK-3

SK-6

SK-6

SK-9

SK-10

model and power
of vacuum pump

1.5KW

2.2KW

2.2KW

4KW

4KW

5.5KW

11KW

11KW

15KW

18.5KW

Weight(kg)

800

1100

1200

1500

2800

3300

3600

6400

7500

8600
