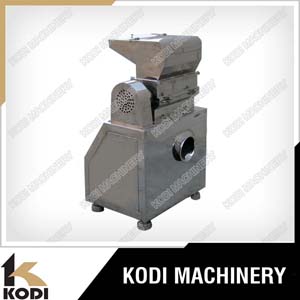

Stainless Steel Coarse Crusher



Description of CSJ Coarse Crusher

It’s used as specialized equipment for roughly crushing material in previous process, and can crush hard and tough material like plastics and steel wire. Especially it is not limited by glutinousness ,hardness, softness or fiber shape of material and has good crushing effect to all materials.

Purpose of crusher: To crush big size carrageenan in to small pieces 0.5-20mm

Main Application of Stainless Steel Coarse Crusher

The cjs coarse crusher is applied for industries such as pharmaceutics, chemical, metallurgy and foodstuff. It is used as specialized equipment for coarse crushing of material in preparatory process, and can crush hard and tough material like plastics and steel wire. Especially it is not limited by viscosity, hardness, softness and fiber shape o material and has good effect to all materials.

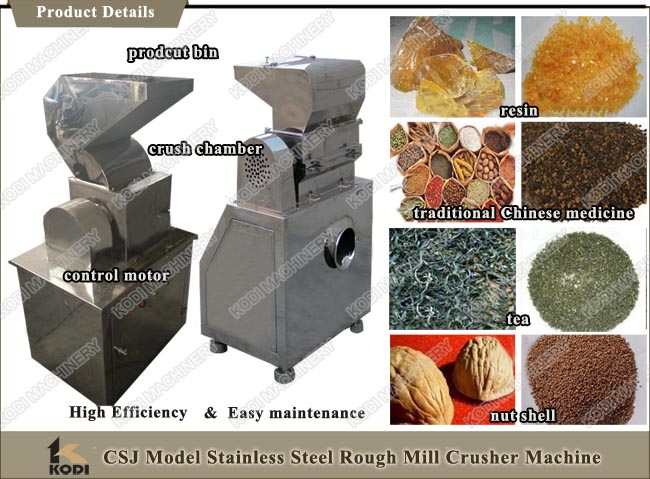

Use & Features of KODI CSJ Coarse Crusher

Stainless steel coarse crusher is a hammering type mill used to pulverize drugs, chemical materials, food staff and other materials with medium hardness and low viscosity. It is suitable for the suitable for the production in middle and small-batches or sample experiments in laboratories. Materials are fed into the pulverizing chamber by a helical conveyer, and pulverized instead of other energies of other energies of revolving parts of the machine.

The stainless steel coarse crusher is simple in structure and the pulverizing chamber can be dismounted assemble and be dismounted and cleaned easily. All the parts in the chamber which contact materials are treated specially and corrosion resistama. As a result, in addition.
Any material ,drifted into grind chamber through feed bucket ,punched by knife edges and knife stands ,cut and grinded simultaneously by revolving and fixed knives, and due to the centrifugal force of revolving object ,automatically runs to exit.


Coarse Crusher Working Method The machine has horizontal crushing structure and the whole machine is made of stainless steel. Any raw material, being fed into the grind chamber through the upper feeder, stroked by the revolving and fixed knives, cut and grind and then automatically runs to the exit by the centrifugal force of revolving object. The machine is designed according to "GMP" standard, with the characteristics of compact structure, easy washing, and low noise. So it is the most ideal new product in current crusher market.



Packing and Delivery


Technical Parameter

 Model

80

120

200

400

600

Capacity (kg/h)

10-200

100-500

150—800

200-1000

500-1500

Size of input granules (mm)

≤50

≤100

≤100

≤100

≤100

Fineness of products (mm)

0.5-20

0.5-20

0.5-20

0.5-20

0.5-20

Speed of principal axis  (r/min)

400

400

400

380

380

Power (kw)

1.5

3

5.5

7.5

15

Weight (kg)

150

250

420

480

160

Overall Size L×W×H (mm)

510×450×980

650×700×1200

720×850×1350

1200*1000*1450

1300*1100*1650

Minimum Order Quantity(set)

1

1

1

1

1
