Home >> Products >> Mixer Crusher and Sifter

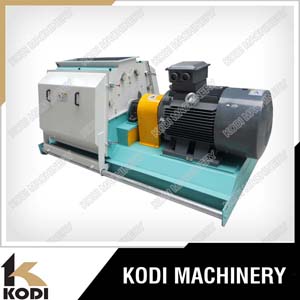

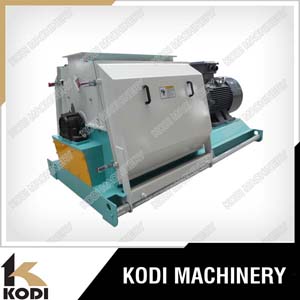

SFSP Hammer Mill



Description of Hammer Mill

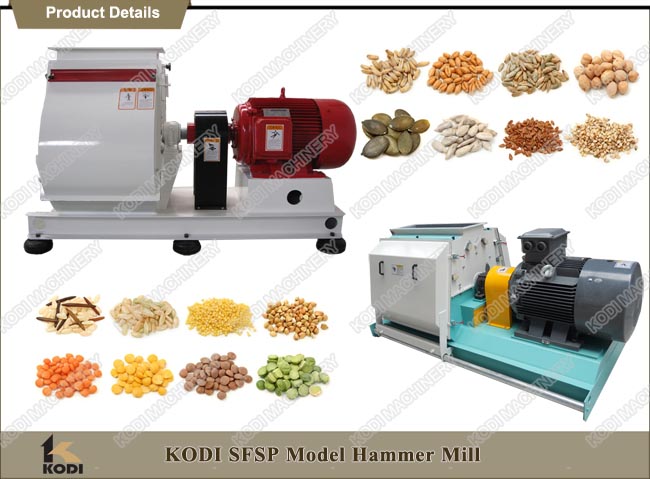

1. SFSP hammer mill is used for grinding raw materials of large and medium livestock and aqua feed mills. It can also be used for grass and pharmacy fine grinding. The granular raw materials, such as corn, sorghum, wheat, beans, etc can be grinded;

2. The seaweed/carrageenan hammer mill is derived from the tear circle type hammer mill and efficiency can be improved by 45%-90% compared to universal hammer mill;

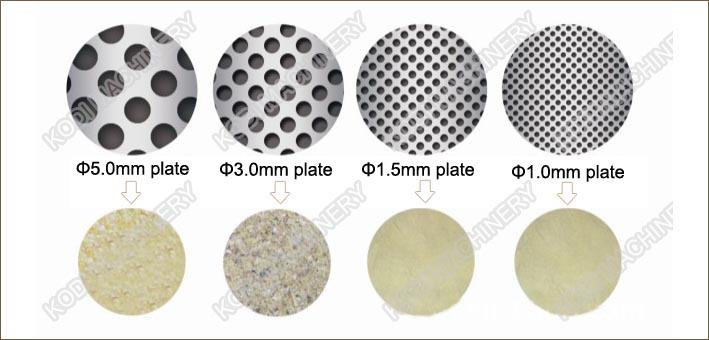

3. It can produce qualified aqua feed under full load with 0.8,1 screen and reduce jam significantly. Both coarse and fine grinding can be completed without changing screens;

4. The right aspiration can make materials go through screen quickly, reduce temperature of grinding chamber and increase output effectively.






Technical Parameters of Hammer Mill

Model

SFSP56*36

SFSP56*40

SFSP60*30

SFSP60*45

SFSP60*60

SFSP60*75

Capacity(t/h)

2.5--5

4--7

2--5.5

5--9

7-11

8--13

Diameter of rotor(mm)

560

560

600

600

600

600

Width of chamber mm

360

400

300

450

600

750

Speed of hammersm/s

86

86

94

94

94

94

Hammer QTY(pcs)

20

24

24

44

48

60

Speed of rotor (r/min)

2980

2980

2980

2980

2980

2980

Power (kw)

18.5-22

30-37

18.5-22

45-55

55-75

75-90

Model

SFSP66*40

SFSP66*80

SFSP66*100

SFSP66*120

SFSP112*30

SFSP112*50

Capacity(t/h)

5-7

15-18

22-26

33-37

6-14

15-25

Diameter of rotor(mm)

660

660

660

660

1120

1120

Width of chamber mm

400

800

1000

1200

290

500

Speed of hammersm/s

102

102

102

102

86.5

86.5

Hammer QTY(pcs)

56

120

152

184

54

90

Speed of rotor (r/min)

2980

2980

2980

2980

1480

1480

Power (kw)

37-45

90-110

132-160

200-220

55-75

132-160

Model

SFSP112*75

SFSP112*100

SFSP138*38

SFSP138*50

SFSP138*75

SFSP138*125

Capacity(t/h)

30-40

40-50

16-20

24-29

48-55

66-72

Diameter of rotor(mm)

1120

1120

1380

1380

1380

1380

Width of chamber mm

780

1000

380

500

750

1000

Speed of hammersm/s

86.5

86.5

105

105

105

105

Hammer QTY(pcs)

136

180

----

----

----

----

Speed of rotor (r/min)

1480

1480

1480

1480

1480

1480

Power (kw)

200-220

250-300

75-90

110-132

220-250

315-350








































Drawings of Hamer Mill
