Home >> Products >> Drying Machine

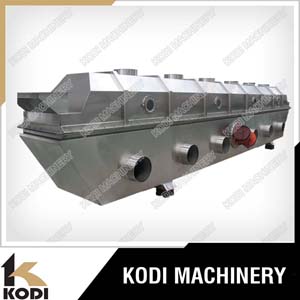

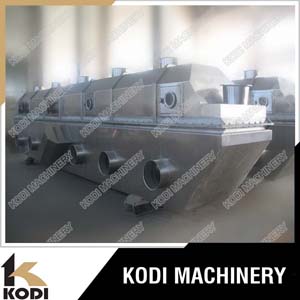

ZLG Vibrating Fluid Bed Dryer



Working Principle and Advantages of ZLG Fluid Bed Dryer

The material has been feed into the fluid bed dryer, under the dual function of the vibration and air flow, the material move along the fluid bed as throwing forward continuously. Hot air upward through the fluid bed and wet materials from the heat after the exchange, after the cyclone dust emissions from dry materials from discharging from the discharging end.

Vibrating Fluid Bed Dryer Applications

I> Inorganic: borax, boric acid, glass fibers, ammonium hydrogen fluoride, potassium permanganate, sodium perborate, ammonium thiocyanate, sodium thiocyanate, cobalt sulfate, nickel sulfate, zinc sulfate heptahydrate, ammonium chloride, calcium, strontium chloride, sodium chlorate, strontium, copper sulfate pentahydrate, sodium chlorite, sodium sulfite, ammonium nitrate, calcium nitrate, sodium nitrate, potassium bromide, sodium bromide, sodium sulfate, sodium salt

II> Organics: oxalic acid, succinic acid, hydroquinone, p-nitrobenzoic acid, fumaric acid, pentaerythritol, resorcinol, catechol, calcium hypochlorite, sodium silicate, GDL, sodium gluconate, thiourea, sorbitol, dicyandiamide, iminodiacetonitrile, itaconic acid

III> Fertilizer: potassium dihydrogen phosphate, calcium hydrogen phosphate, monoammonium phosphate, ammonium sulfate, magnesium sulfate heptahydrate

IV> Pesticides: Imidacloprid granules, granules glyphosate

V> Polymer: High-absorbent resin, a polystyrene resin, sodium polyacrylate

VI> Chemicals: washing powder

VII> Chemical additives: methyl cellulose, polyacrylamide, hydroxyethyl cellulose

♦ Food and beverage industry:L-arabinose, acesulfame, erythritol, trehalose, caramel, tartaric acid, coffee, bread crumbs, milk powder, citric acid, potassium citrate, sodium citrate , maltitol, xylose, xylitol, Ru refined, sugar, potassium sorbate, salt, sodium saccharin, monosodium glutamate, sodium iso-VC,

♦ Pharmaceutical medical industry:honeysuckle, paracetamol, taurine, vitamin C

♦ Animal husbandry and fishery industry:canola ,seeds
Features of Fluid Bed Dryer

The vibration is created by motor. It is stable in operation and convenient in maintenance, low noise and long life.
    High heat efficiency, raw material is heated evenly and heat exchange is fully used and dry capacity is high. Compared with ordinary drier, the energy can be saved about 30%. The state of fluidization is uniform and no dead gaps or broken phenomenon so as to have dry, cool products.
    It is good in regulation and wide in suitability. The thickness of raw material layer and movable speed inside the machine and the amplitude can be adjusted.
    It is small for damaging the surface of raw material. The equipment can be used for drying raw materials that are easy broken. The drying effect can not be affected even if raw materials have irregular shape.
    It is effective to prevent cross pollution between raw material and air because the equipment adapts fully closed structure. The environment of operation is clean.
    You can string multi-set to raised capacity of raw materials, such as polyacrylamide.

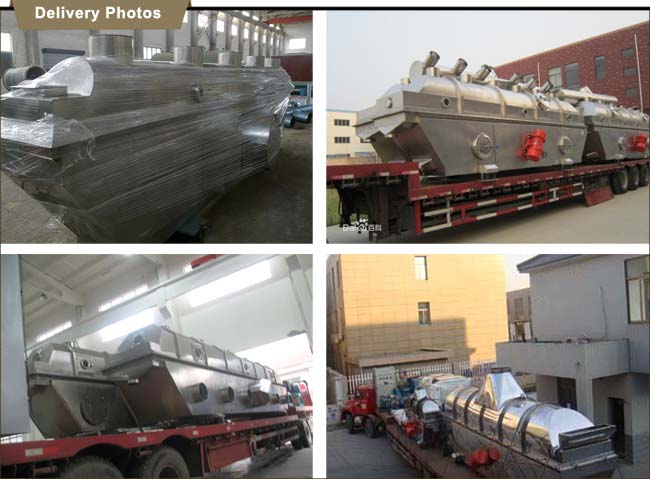

Packing and Delivery of KODI ZLG Vibrating Fluid Bed Dryer

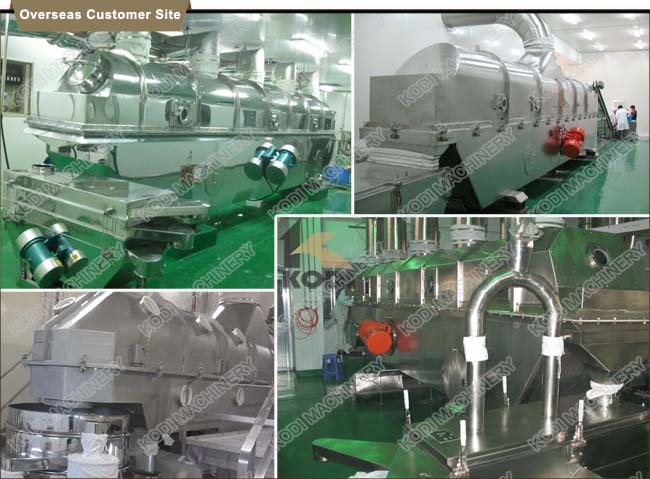

Successful Experience Overseas of KODI ZLG Fluid Bed Dryer

ZLG Vibrating Fluid Bed Dryer Technical Parameters

Model

Area of fluidized-bed
(M2)

Temperature of inlet air
(oC)

Temperature of outlet
(oC)

Water evaporation

(kg)

Vibration motor

Model

Power Kw

ZLG3×0.30

0.9

70-140

40-70

20-35

ZDS31-6

0.8×2

ZLG4.5×0.60

2.7

70-140

40-70

70-90

ZDS32-6

1.1×2

ZLG6×0.60

3.6

70-140

40-70

100-130

ZDS41-6

1.5×2

ZLG6×0.75

4.5

70-140

40-70

120-140

ZDS42-6

2.2×2

ZLG6×0.9

5.4

70-140

40-70

140-170

ZDS42-6

2.2×2

ZLG7.5×0.75

5.625

70-140

40-70

150-180

ZDS51-6

3.0×2

ZLG7.5×0.9

6.75

70-140

40-70

160-210

ZDS51-6

3.0×2

ZLG7.5×1.2

9

70-140

40-70

200-260

ZDS51-6

3.0×2
